da Vinci Designs Joint Venture Tandem 700c or 26″ Wheels
New Di2 11 x 3 Upgrade Available Now

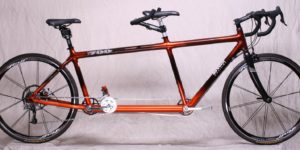

da Vinci Designs Tandem Bicycle - Carbon Fiber Joint Venture
Titanium Tandem with S&S Couplers

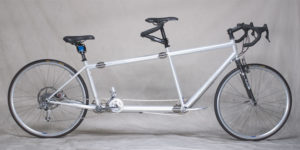

Steel Joint Venture Tandem Bicycle
S&S Coupled Tandem Bike
Tandem Bicycle
da Vinci Tandem

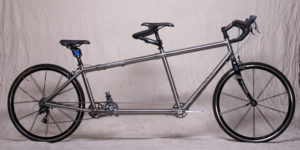

Titanium Tandem da Vinci

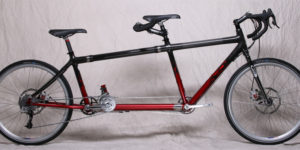

Carbon Fiber Tandem with S&S Couplers
Tandem Bicycle with S&S Couplers

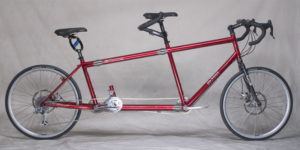

Chrome Moly Tandem Bicycle

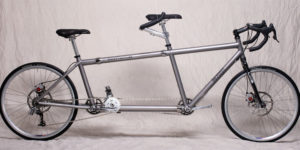

Titanium Coupled Tandem
da Vinci Tandem
Tandem Bicycle with S&S Couplers
High quality component package on a road tandem.
Available in:
Chrome-moly Steel (with and without S&S Couplers)
Custom Reynolds 7005 Aluminum (without S&S Couplers)
Titanium (with and without S&S Couplers)
Carbon Fiber (with and without S&S Couplers)
Frame Material Custom drawn, oversize, multi-butted, Reynolds chrome-moly steel
Optional Frame Material Carbon Fiber, 7005 Aluminum, Titanium
Shifters Campagnolo Record – Optional Shimano Ultregra STI – NEW Di2 11×3
Rear Deraileur Modified SRAM X.9
Brakes Avid BB7 Rear Disc and Front Avid 1D7 w/ Travel Agent
Front Bars FSA Wing Compact – 44, 42, or 40cm
Rear Bars Profile Stoker 26 – 47cm
Front Stem Thomson Elite X2
Rear Stem Control Tech Adjustable Stoker
Cranks da Vinci Designs Billet Machined (large choice of lengths)
Rear Cogs SRAM PG-980 11-32 9sp, or 11-28, 11-34
Driving Gears Shimano Hyperglide 12-18-24-30 Equivalent to 24-36-48-60
(Only 3 chainrings with Shimano STI or Di2 13-21-29 = 26-42-58)
Eccentrics da Vinci Designs
Front Hub White Industries
Rear Hub White Industries Tandem Disc – 145mm
Rims da Vinci Designs V-23
Tires Panaracer RIBMO 700×28  or  26 X 1.25″
Front Seatpost Thomson Elite 31.6mm
Rear Seatpost Cane Creek Thudbuster ST
Saddles Selle Italia Man Flow and/or Lady Flow
Colors Click here to see the Paint Colors page
Retail Price $5495 for Steel
$5895 for Aluminum
$8995 for Titanium
$9295 for Carbon Fiber
S&S Couplers add $1600 on steel frames, $3300 on titanium, $2700 on carbon fiber frames
(S&S Not available on aluminum frames)

da Vinci Designs – Options  & Upgrades

Package #1 – $675 Package #2 – $800
Carbon Fiber Fork, choice of:
WoundUp, Control Tech w/26″ Wheels, or ENVE Composites w/700c Wheels.
White Industries Freewheels for ICS
Cane Creek 110 Headset
House of Kolor Kandy or Two color fade Paint job
Carbon Fiber Fork, choice of:
WoundUp, or Control Tech.
White Industries Freewheels for ICS
Cane Creek 110 Headset
House of Kolor Kandy or Two color fade Paint job
Front Disc Brakes
Package #3 – $1195 Package #4 – $1320
Carbon Fiber Fork, choice of:
WoundUp, Control Tech w/26″ Wheels, or ENVE Composites w/700c Wheels
White Industries Freewheels for ICS
Cane Creek 110 Headset
House of Kolor Kandy or Two color fade Paint job
Rolf Prima, or Spinergy Tandems Wheels
Carbon Fiber Fork, choice of:
WoundUp, or Control Tech.
White Industries Freewheels for ICS
Cane Creek 110 Headset
House of Kolor Kandy or Two color fade Paint job
Front Disc Brakes
Rolf Prima, or Spinergy Tandems Wheels

NEW Shimano Di2 electronic shifting   $2500 upgrade
We use Ultegra road shifters and XTR 11×3 front and rear derailleurs for an incredibly wide range of gears.

Included with the Di2 build, we install a XTR Handlebar Display unit so you can see what gear (front and rear) you are in as well as battery level and easy charging port.

Cranks
200mm, 180mm, 175mm, 172.5mm, 170mm, 167.5mm, 165mm, 160mm, 150mm,  3 hole 130/150/170mm, or  3 hole 120/140/160mm
Black anodizing $45/pr. (not always available).

Tires

Model
(F= Folding, W=Wire bead)
Description Actual Width Weight
Panaracer RIBMO 700×28 /F Great, long wearing, stable, fast, and
good puncture resistance.
1.10″ (28mm) 392g
Panaracer RIBMO 700×32 /F Wider version of above tire. 1.25″ (32mm) 400g
Panaracer RIBMO 26″x1.25″ /F Great, long wearing, stable, fast, and
good puncture resistance.
1.18″ (30mm) 355g
Panaracer RIBMO 26″x1.5″ /F Wider version of above tire.  1.45″
(36mm)
440g
Kenda Kwick Roller Sport 26×1.25″ /W Good tandem road tire. Long wearing 1.13″ (29mm)
Kenda Kwick Roller Sport 26×1.5″ /W Wider Version of above. 1.5″
We have other tires. We stock tires from skinny to knobby, please ask.



Captain Stem

10 deg. rise 60, 70, 80, 90, 100, 110, 120, 130mm N/C
17 deg. rise 60, 75, 90, 100, 110, 120, 130mm N/C
25 deg. rise 75, 90, 105,120mm N/C
40 deg. rise 75, 90, 105,120mm N/C



Captain Drop Bars

FSA Wing Compact Comfortable shape drop bars with a shallow drop. 44cm (default), option 42cm N/C
Profile Cobra Carbon Fiber drop bars with ergonomic contours $225
ENVE Composites What can you say, ENVE Composites drop bars, are light, strong, the best $306
Reynolds 44cm Carbon Fiber Round bar. Nice shape and drop $156

Stoker Stem

Control Tech Adjustable Long 200 to 255mm. They can be cut shorter. N/C
Control Tech Adjustable Medium 170 to 225mm. They can be cut shorter N/C
Extra Stoker Boom Long stoker stem boom to switch between an adult and child stoker,
and the adjustment of the stoker stem is not enough.
$45
2″ (50mm) Stem Riser This stem extension works with most bars to raise,
or move it closer. .
$48
Fixed Length Titanium Half the weight of an adjustable stem. Available in 160mm, 180mm, or 200mm. Custom length available for addition cost. $125



Stoker handlebars

Profile Stoker Bars 47cm wide Light, comfortable, multiple hand positions. Allows most fore/aft reach
range.
N/C
Profile T2 Wing Stoker Bar 44cm Same as above with OS Clamp (31.8mm) “Wing” flat area for comfort. $47
Profile Cobra Wing Stoker Bar 46cm Some as T2 Wing above but carbon fiber, lighter, and hand contours for even more comfort. $225
46cm Wide Drop Bars Wide drop bars to clear the captain’s hips (price includes Cane Creek stoker levers). $49
44cm Profile Cobra Drop Bars Profile Cobra carbon fiber drop bars with Cane Creek stoker lever. $274
44cm ENVE Composites Drop Bars ENVE Composites carbon fiber drop bars with Cane Creek stoker lever. $355
Flat Mountain Bars Some prefer the wider flat bars. Lighter, too. N/C
25 to 90mm Riser Bars For tall stokers with short captains, or stokers who like to sit up more. $20
Bar ends Add comfort and hand positions to flat bars or riser bars. $25



Child Adapter

Child Kit Clamps to rear seat tube for higher crank location. Price includes
BB Spindle and 32″ of chain. This works great with our Three Hole Cranks
$162
Little Stoker Kid Cranks OUT OF STOCK- Re-machined Shimano XT Cranks two holes, 125 and 145mm. N/A
Extra Stoker Boom Long stoker stem boom to switch between an adult and child stoker,
and the adjustment of the stoker stem is not enough.
$45



Stoker Seatposts

Thudbuster Short Travel Lightest shockpost we stock., 440g.
Includes different elastomers to tune spring rate.
Thudbuster Long Travel Longest Travel, requires 144mm from saddle rails to top of seat tube, 565g.
Includes different elastomers to tune spring rate.
Great alternative to a Softride Beam.
Carbon Fiber Bontrager 250mm Carbon fiber non-suspended 181g



Saddles

Sella Italia Man Flow (TransAm) and/or Lady Flow (TransAm)
Velo Pronto and Serina Men’s and/or Women’s
We have other saddles. Call to inquire.

Other Upgrades, Options and Additions

Wound Up Carbon Fiber Fork, available for 26″, 700c and front disc brake Great comfort and performance upgrade $425
ENVE Carbon Fiber Fork for 700c Canti Brake Light, strong and more “traditional” looking carbon fiber. $425
Control Tech Carbon Fiber Fork for 26″ Canti or Disc Brake Light, strong and more “traditional” looking carbon fiber fork. This fork has canti studs in the 26″ location, lower eyelets and a disc brake mount. It is great for using a lowrider front rack that attached via the canti studs. $425
Front Disc Brakes Avid Mechanical Disc Brake with 200mm rotors, replaces front rim brakes. Safer of long descents. Rear disc brake standard on all models. $150
White Industries Freewheels These are the highest quality freewheels made and have been adapted to our Independent Coasting Drivetrain. Durable, precision, and sealed. 17, 18, or 19 tooth. $185
Titanium Bottom Brackets Same design as stock (See Components page) Save 55g each or 110g per tandem $75 ea
Phil Wood Titanium BB Made in USA titanium bottom bracket. Same weight as above ti bb’s $200 ea
Cane Creek 110 Headset The best headsets money can buy. Cane Creek has 110 year Warrantee. $75
Black Hubs and Spokes This option is for bikes with White Industry Hubs and V-23 rims. $40
Rolf Tandem Wheels Through exclusive arrangements with Rolf, now available for 26″ road tandems as well as the standard 700c *** Add $50 for front disc brake $550
Spinergy TX2 Tandem Wheels Available with black or white spokes. *** Add $50 for front disc brake $550

We use only the highest quality PPG and House of Kolor paint.
All bikes are painted with primer, base coat and clear coat.
The colors on your computer may not look exactly the same as is does in person.

Custom Colors & Paint Jobs

None stock colors (most colors) – add ~$60 ea

Pearl added to clear coat – – – – – add $40

House of Kolor Kandy colors – – – – add $100

Two color fades – – – – – – – – – – add $100

Three color fades – – – – – – – – – add $150

Kameleon (Shade Shifter) – – – – – add $200

Flames or similar masking – – – – – add $250 +/-

Midnight Blue – 5674 • Dark metallic blue. We first saw this color on a Honda CRV and had to add it to our selection.
Stratto Blue – HOK BC04 • Bright metallic royal blue.
Lapis Blue – HOK BC05 • This is an updated version of the Viper Blue which was one of the most popular colors we have used.
Lake Violet Pearl – HOK PBC63 • Very pearlescent. It can look blue or blue/purple in different light.
Passion Pearl – HOK PBC65 • Very pearlescent. This color looks stunning faded with the Lake Violet Pearl.
Pavo Purple – HOK BC10 • Metallic purple.
Blueblood – HOK SG105 • Non metallic or pearl, just very very red.
Tangelo – HOK PBC32 • Pearlescent orange
Sunrise – HOK PBC30
Designo Green – 401131
Cosmic Green – 48929 • This has been a very popular color. Metallic green found on certain VW’s.
Emerald Green – HOK PBC59 • This metallic dark green has a hint of blue like British racing green.
Black – 9700 • Black is beautiful. This is also the easiest color to match the touch up for bikes that will see the abuse of travel.
White – HOK BC26
Snow White Pearl – HOK PBC44 • Very pearlescent, almost metallic silver looking.
Orion Silver – HOK BC02 • Bright metallic silver. This is the base color for all Kandy paint jobs.
Champange – 5411
Titanium Silver – 350004 • This was the closest match we could find to media blasted titanium.
Kandy Apple Red – UK11 • This is the sexiest red around.
Kandy Tangerine – UK08 • Another tragically hip color.
Kandy Pegan Gold – UK12
Kandy Oriental Blue – UK04 • A brighter, deeper version of Stratto Blue.
Kandy Colbalt Blue – UK05 • Dark purple-ish blue that looks like it has been plugged in an oulet and lit up.

frame2

Click here to download frame & fitting dimensions in .pdf form

Road Tandem
Dimensions
Small Medium Large Large/Small
Front Seat Tube C/T
(A1)
20.5″(52.1cm) 22″(55.9cm) 23.5″(59.7cm) 22″(55.9cm)
Rear Seat Tube C/T
(B1)
16.75″(42.5cm) 18.75″(47.6cm) 20.75″(52.7cm) 16.75″(42.5cm)
Front Seat Tube C/C
(C1)
17.2″(45.3cm) 19.3″(49.1cm) 20.8″(52.9cm) 18.75″(47.6cm)
Rear Seat Tube C/C
(D1)
14.2″(36.1cm) 16.2″(41.1cm) 18.2″(46.2cm) 14.2″(36.1cm)
Front Standover* 29.6″(75.3cm) 31″(78.7cm) 32.3″(82.1cm) 31.6″ (80.4cm)
Rear Standover* 26.1″(66.2cm 27.9″(70.9cm) 30.4″(77.2cm) 26.4″(67.2cm)
Front Top Tube
(E1)
21.5″(54.6cm) 22″(56cm) 22.5″(57.2cm) 22.5″(57.2cm)
Rear Top Tube
(F1)
28.4″(72.1cm) 28.4″(72.1cm) 28.4″(72.1cm) 28.4″(72.1cm)
Head / Seat Tube
Angle
73/73 Deg. 73/73 Deg. 73/73 Deg. 73/73 Deg.
BB Height * 10.5″(27cm) 10.5″(27cm) 10.5″(27cm) 10.5″(27cm)
Reach
(See drawing “R”)
14.9″(37.8cm 15″(38.1cm) 15.2″(38.6cm) 15.2″(38.6cm)
Stack
(See drawing “S”)
21.7″(55cm) 22.9″(58cm) 23.8″(60.5cm) 23.8″(60.5cm)

*These dimensions are accurate with 1.1″ tires (28mm). Add .5″ (1.3cm) for 1.5″ tires.
